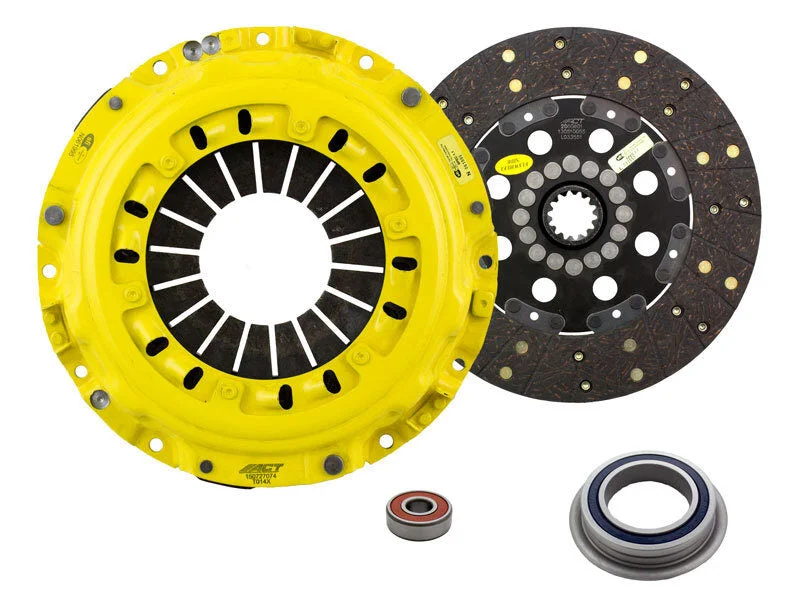

ACT TS4-XTMM – 1993 Toyota Supra XT/Modified Street Clutch Kit

Description

ACT TS4-XTMM – 1993 Toyota Supra XT/Modified Street Clutch Kit

ACT Extreme Modified Street Clutch Kit

XT/Modified Street

TS4-XTMM kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs allow for quicker shifting and engagement. Quiet operation with increased strength and reliability.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Product Weight (lbs.): 18.6Torque Capacity (ft/lbs.): 642Torque Capacity Over OE: 62%Pilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.8Clutch Disc Diameter: 250Disc Material: OrganicInput Spline Quantity: 14Input Shaft Diameter: 1.25Disc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: No
