ACT TA3-HDR6 – 2011 Toyota Tacoma HD/Race Rigid 6 Pad Clutch Kit

Description

ACT TA3-HDR6 – 2011 Toyota Tacoma HD/Race Rigid 6 Pad Clutch Kit

ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit

HD-O/Race Rigid 6 Pad

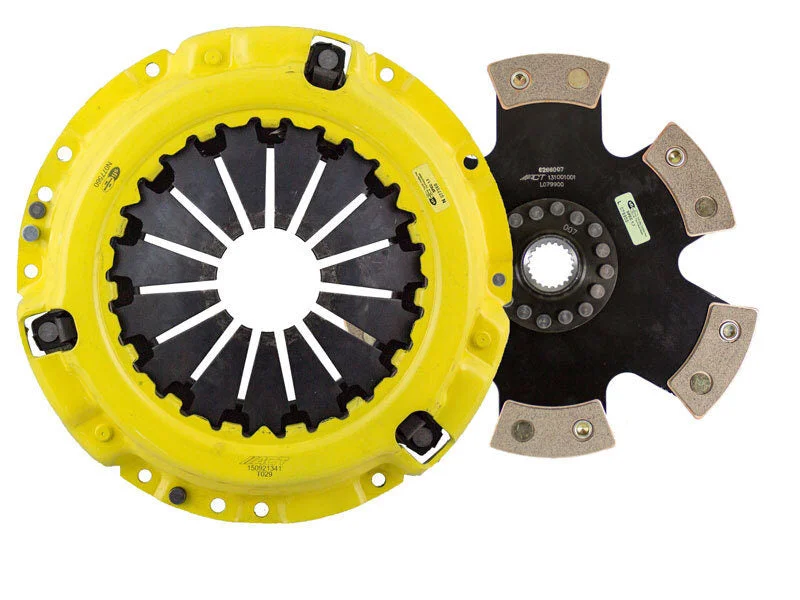

TA3-HDR6 kit features ACT’s highly regarded Heavy Duty pressure plate and rigid 6 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 6 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Input Shaft Diameter: 1.125Alignment Tool Included: NoDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 20.6Torque Capacity (ft/lbs.): 585Torque Capacity Over OE: 69%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: NoClutch Disc Diameter: 10.5Clutch Disc Diameter: 266Disc Material: CeramicInput Spline Quantity: 21
