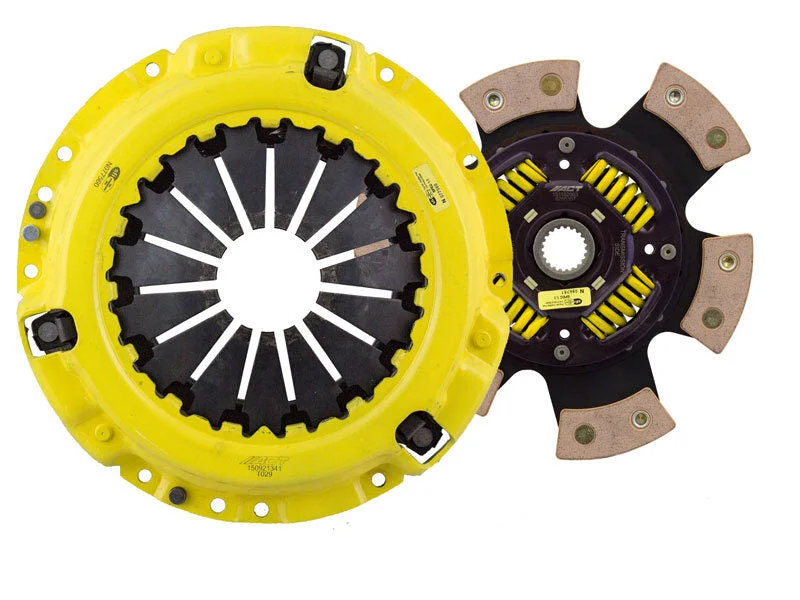

ACT TA3-HDG6 – 2011 Toyota Tacoma HD/Race Sprung 6 Pad Clutch Kit

Description

ACT TA3-HDG6 – 2011 Toyota Tacoma HD/Race Sprung 6 Pad Clutch Kit

ACT Heavy Duty Off-Road Race Sprung 6 Pad Clutch Kit

HD-O/Race Sprung 6 Pad

TA3-HDG6 kit features ACT’s highly regarded Heavy Duty pressure plate and spring-center 6 pad race disc delivering high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 6 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Release Bearing Included: NoClutch Disc Diameter: 10.5Clutch Disc Diameter: 266Disc Material: CeramicInput Spline Quantity: 21Input Shaft Diameter: 1.125Alignment Tool Included: NoDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 22.6Torque Capacity (ft/lbs.): 585Torque Capacity Over OE: 69%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: Heavy Duty
