ACT T1S-N03 – 93-98 Nissan Skyline GT-R (R32/R33) Mod-Twin 225 HD Rigid Street Clutch Kit
ACT Mod-Twin 225 Heavy Duty Rigid Street Clutch Kit

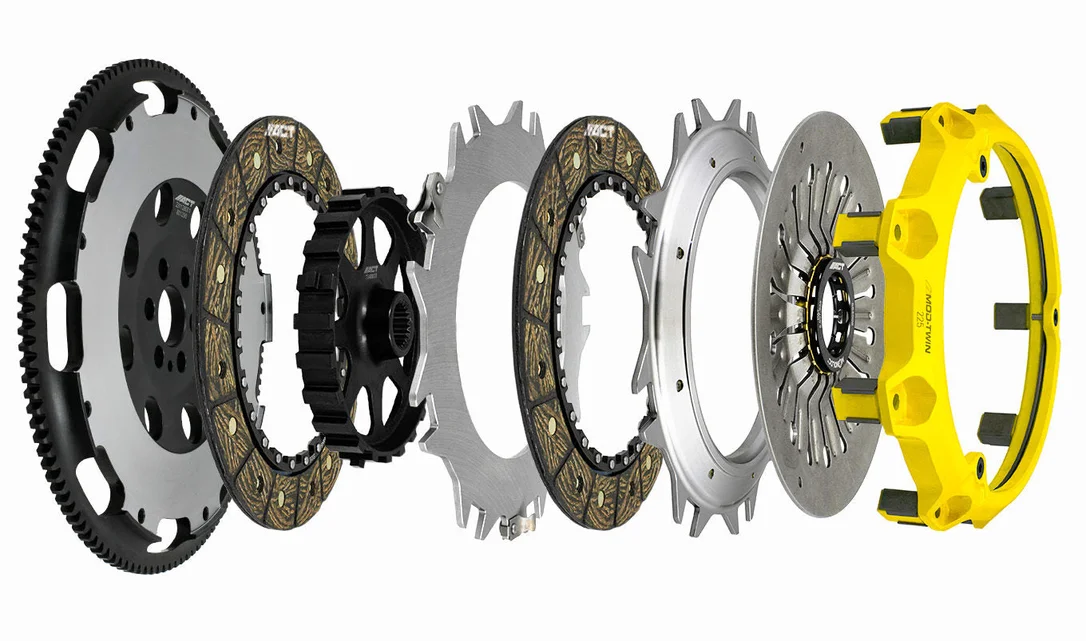

T1S-N03 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
- “Excellence in Performance”, backed by the best one-year warranty in the industry!
Product Weight (lbs.): 28.5SFI: 1.2Torque Capacity (ft/lbs.): 700Torque Capacity Over OE: 74%Flywheel Included: YesPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 8.8Clutch Disc Diameter: 225Disc Material: OrganicInput Spline Quantity: 24Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: YesPilot Bearing Included: YesClutch Master Cylinder Included: No
