ACT T1RS-MZ02 – 85-92 Mazda RX-7 FC Push Type Mod-Twin 225 HD Rigid Race Clutch Kit

Description

ACT T1RS-MZ02 – 85-92 Mazda RX-7 FC Push Type Mod-Twin 225 HD Rigid Race Clutch Kit

ACT Mod-Twin 225 Heavy Duty Sprung Race Clutch Kit

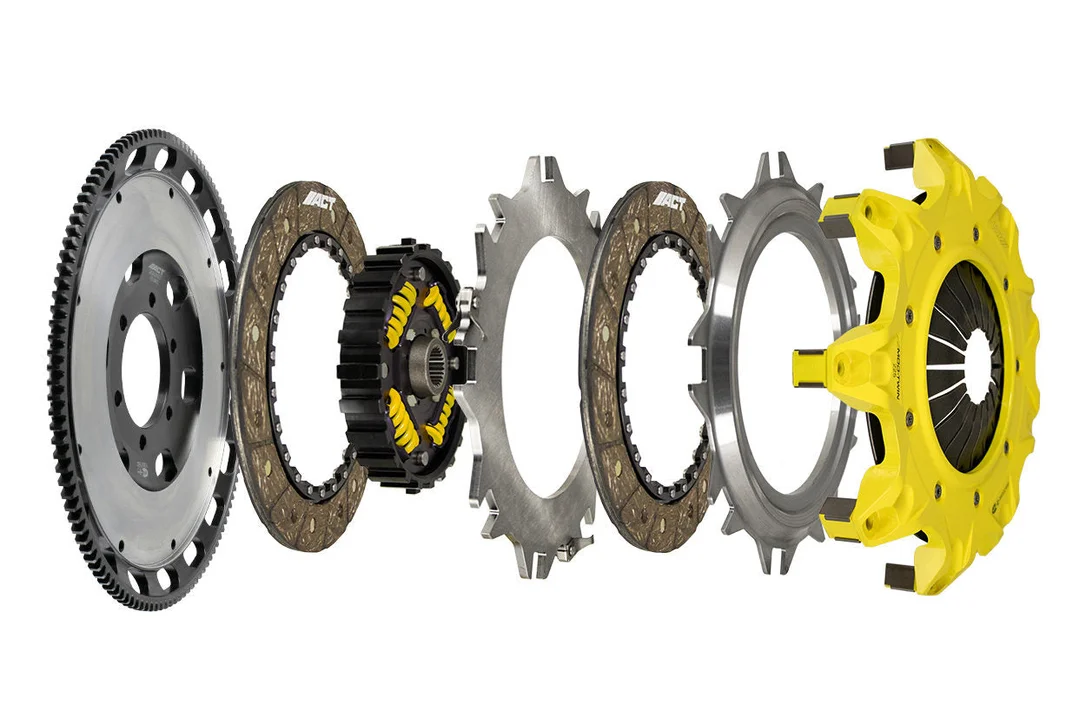

T1RS-MZ02 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Part Fitment Requirement: Flywheel requires counterweight (not included).Product Weight (lbs.): 28.0SFI: 1.2Torque Capacity (ft/lbs.): 800Torque Capacity Over OE: 181%Flywheel Included: YesPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 8.8Clutch Disc Diameter: 225Disc Material: CeramicInput Spline Quantity: 23Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SprungGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: YesPilot Bearing Included: YesClutch Master Cylinder Included: No
