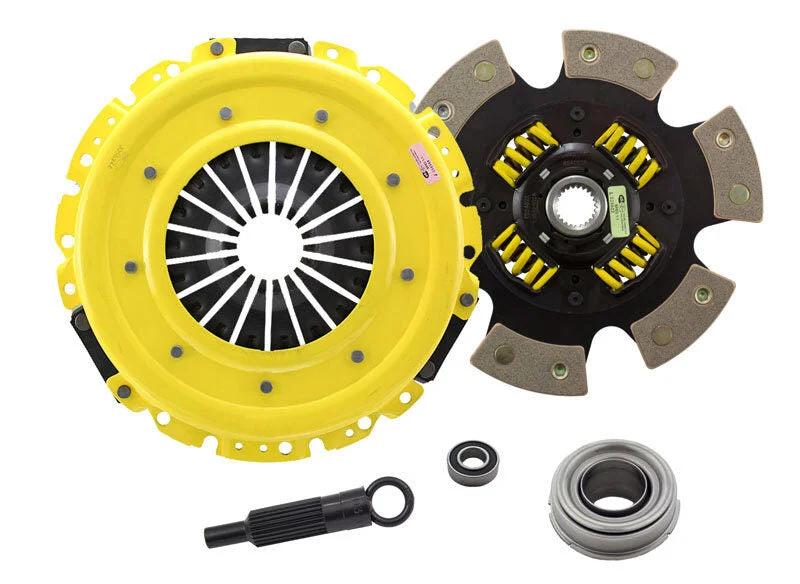

ACT MS1-XXG6 – 1987 Chrysler Conquest MaXX/Race Sprung 6 Pad Clutch Kit

Description

ACT MS1-XXG6 – 1987 Chrysler Conquest MaXX/Race Sprung 6 Pad Clutch Kit

ACT Max Extreme Race Sprung 6 Pad Clutch Kit

MaXX/Race Sprung 6 Pad

MS1-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Product Weight (lbs.): 16.6Torque Capacity (ft/lbs.): 625Torque Capacity Over OE: 156%Pilot Bushing Included: NoPressure Plate Type: Maxx XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.4Disc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: NoClutch Disc Diameter: 240Disc Material: CeramicInput Spline Quantity: 23Input Shaft Diameter: 1Alignment Tool Included: Yes
