ACT HP4-XTG6 – 1990 Honda Prelude XT/Race Sprung 6 Pad Clutch Kit

Description

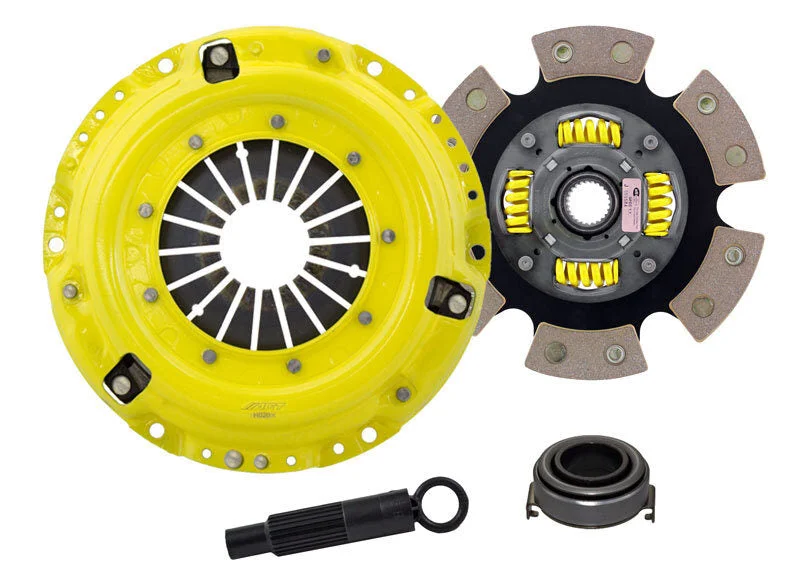

ACT HP4-XTG6 – 1990 Honda Prelude XT/Race Sprung 6 Pad Clutch Kit

ACT Extreme Race Sprung 6 Pad Clutch Kit

XT/Race Sprung 6 Pad

HP4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Grade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 13.5Torque Capacity (ft/lbs.): 410Torque Capacity Over OE: 140%Pressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 8.7Clutch Disc Diameter: 220Disc Material: CeramicInput Spline Quantity: 24Input Shaft Diameter: 1.03125Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: Yes
