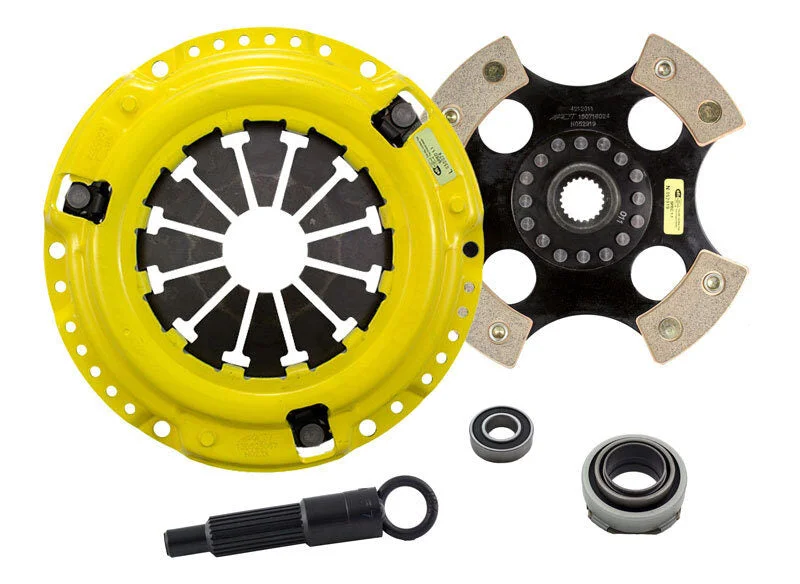

ACT HC7-XTR4 – 1988 Honda Civic XT/Race Rigid 4 Pad Clutch Kit

Description

ACT HC7-XTR4 – 1988 Honda Civic XT/Race Rigid 4 Pad Clutch Kit

ACT Extreme Race Rigid 4 Pad Clutch Kit

XT/Race Rigid 4 Pad

HC7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Clutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: NoPart Fitment Requirement: Must use with 90-01 SOHC flywheel (not provided). ’88 Upgrade.Product Weight (lbs.): 9.8Torque Capacity (ft/lbs.): 380Torque Capacity Over OE: 148%Pilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 8.3Clutch Disc Diameter: 212Disc Material: CeramicInput Spline Quantity: 21Input Shaft Diameter: 0.875Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: Performance
