ACT HC10-HDSS – 17-19 Honda Civic Si HD/Perf Street Sprung Clutch Kit

Description

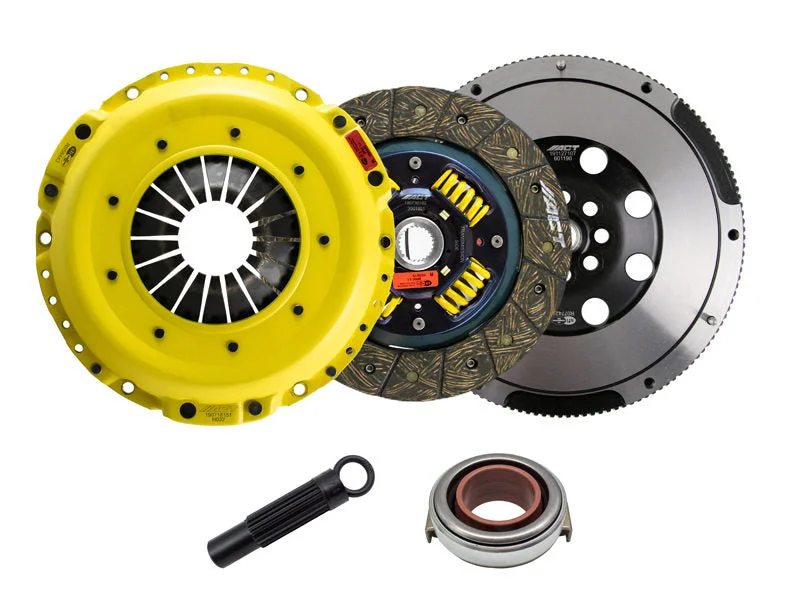

ACT HC10-HDSS – 17-19 Honda Civic Si HD/Perf Street Sprung Clutch Kit

Clutch Kit – Heavy Duty – Single Disc – 9.4 in Diameter – 26.24 mm x 24 Spline – Sprung Hub – Organic – Honda Civic 2017-25 – Kit

HD/Perf Street Sprung

HC10-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Clutch Master Cylinder Included: NoFlywheel Type: StreetlitePart Fitment Requirement: Conversion kit. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).Product Weight (lbs.): 33.1Torque Capacity (ft/lbs.): 363Torque Capacity Over OE: 63%Flywheel Included: YesPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: OrganicInput Spline Quantity: 24Input Shaft Diameter: 1.0325Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: Yes
