ACT GM9-SPG6 – 1998 Chevrolet Camaro Sport/Race Sprung 6 Pad Clutch Kit

Description

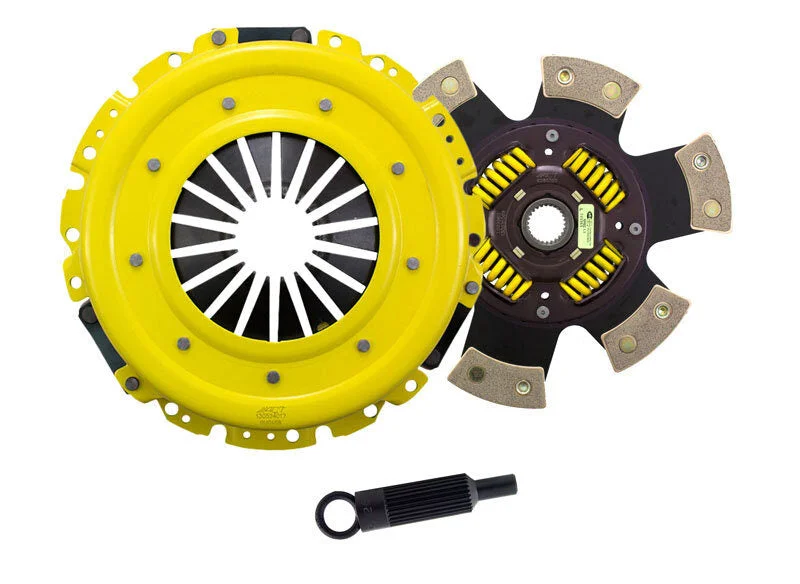

ACT GM9-SPG6 – 1998 Chevrolet Camaro Sport/Race Sprung 6 Pad Clutch Kit

ACT Sport Race Sprung 6 Pad Clutch Kit

Sport/Race Sprung 6 Pad

GM9-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Part Fitment Requirement: Must be used with a flat flywheel or ACT 600585 flywheel for LS2/LS3/LS7.Product Weight (lbs.): 28.9Torque Capacity (ft/lbs.): 830Torque Capacity Over OE: 67%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: SportRelease Bearing Included: NoClutch Disc Diameter: 11Clutch Disc Diameter: 280Disc Material: CeramicInput Spline Quantity: 26Input Shaft Diameter: 1.125Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: No
