Description

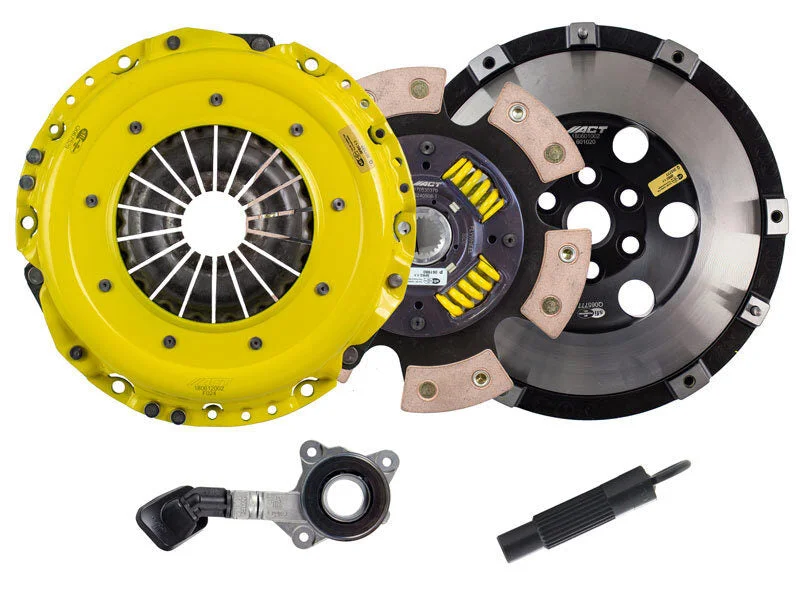

ACT FF5-HDG6 – 16-17 Ford Focus RS HD/Race Sprung 6 Pad Clutch Kit
ACT Heavy Duty Race Sprung 6 Pad Clutch Kit
HD/Race Sprung 6 Pad
FF5-HDG6 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
- “Excellence in Performance”, backed by the best one-year warranty in the industry!
Flywheel Type: StreetlitePart Fitment Requirement: Must be used with the ACT flywheel (included in kit). Gear Rattle is expected when using the ACT single mass flywheel. Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 30.1Torque Capacity (ft/lbs.): 640Torque Capacity Over OE: 73%Flywheel Included: YesPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: CeramicInput Spline Quantity: 23Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: No
