ACT BM9-XTSS – 01-06 BMW M3 E46 XT/Perf Street Sprung Clutch Kit

Description

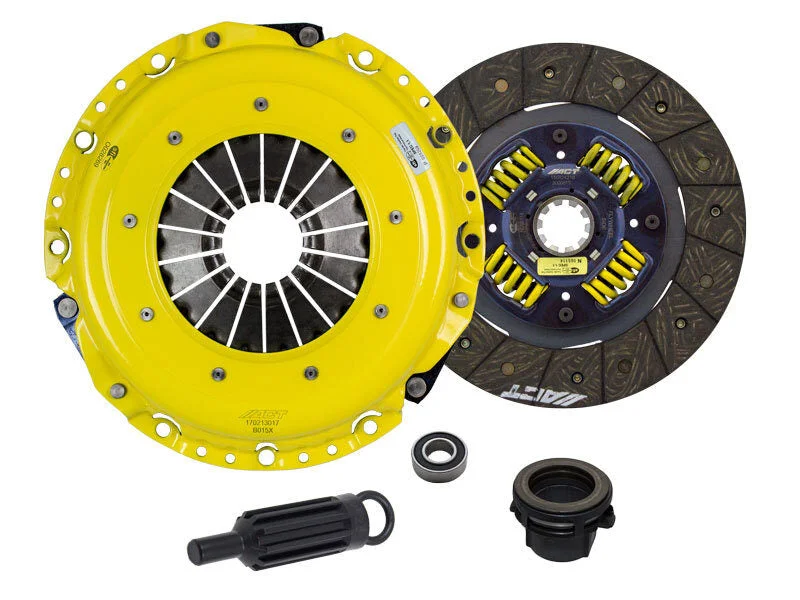

ACT BM9-XTSS – 01-06 BMW M3 E46 XT/Perf Street Sprung Clutch Kit

ACT Extreme Performance Street Sprung Clutch Kit

XT/Perf Street Sprung

BM9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Part Fitment Requirement: Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included). Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 13.8Torque Capacity (ft/lbs.): 549Torque Capacity Over OE: 79%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: OrganicInput Spline Quantity: 10Input Shaft Diameter: 1.375Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: No
