Description

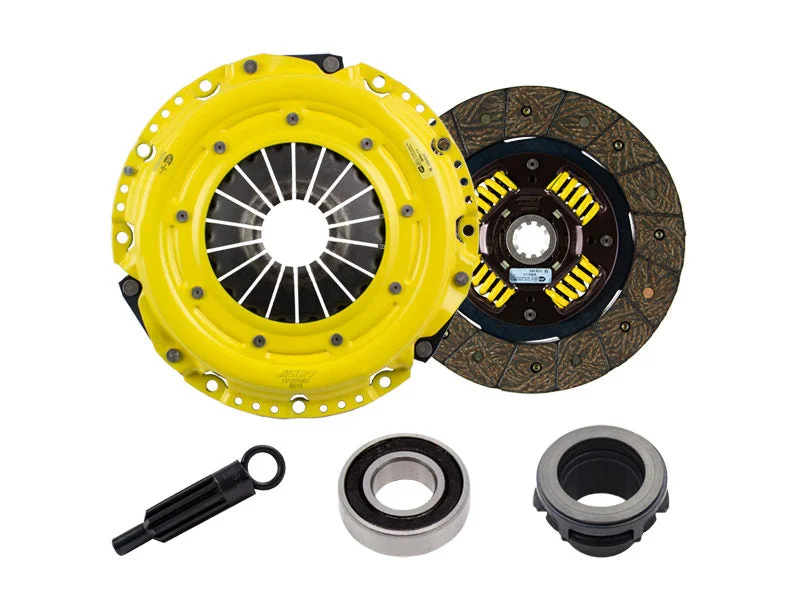

ACT BM17-XTSS – 01-03 BMW 330i/330Ci/325xi / BMW 530i Base 3.0 L6 XT/Perf Street Sprung Clutch Kit
ACT Extreme Performance Street Sprung Clutch Kit
XT/Perf Street Sprung
BM17-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
- “Excellence in Performance”, backed by the best one-year warranty in the industry!
Part Fitment Requirement: Conversion kit. Must be used with ACT 601011 or 601016 flywheel (not included in kit). Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 15.0Torque Capacity (ft/lbs.): 549Torque Capacity Over OE: 79%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: OrganicInput Spline Quantity: 10Input Shaft Diameter: 1.125Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: No
