ACT AI2-XXG6 – 1990 Acura Integra MaXX/Race Sprung 6 Pad Clutch Kit

Description

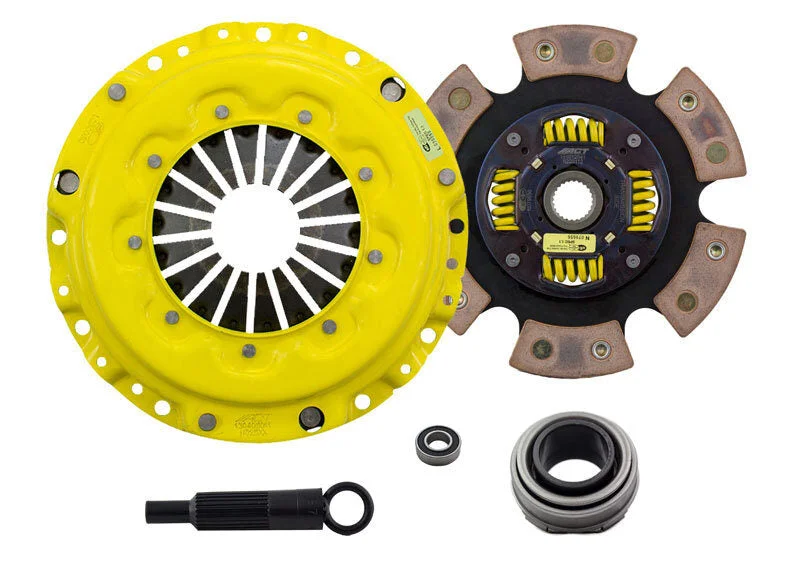

ACT AI2-XXG6 – 1990 Acura Integra MaXX/Race Sprung 6 Pad Clutch Kit

ACT Max Extreme Race Sprung 6 Pad Clutch Kit

MaXX/Race Sprung 6 Pad

AI2-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Product Weight (lbs.): 13.3Torque Capacity (ft/lbs.): 485Torque Capacity Over OE: 162%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: Maxx XtremeRelease Bearing Included: YesClutch Disc Diameter: 8.7Clutch Disc Diameter: 220Disc Material: CeramicInput Spline Quantity: 24Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: No
