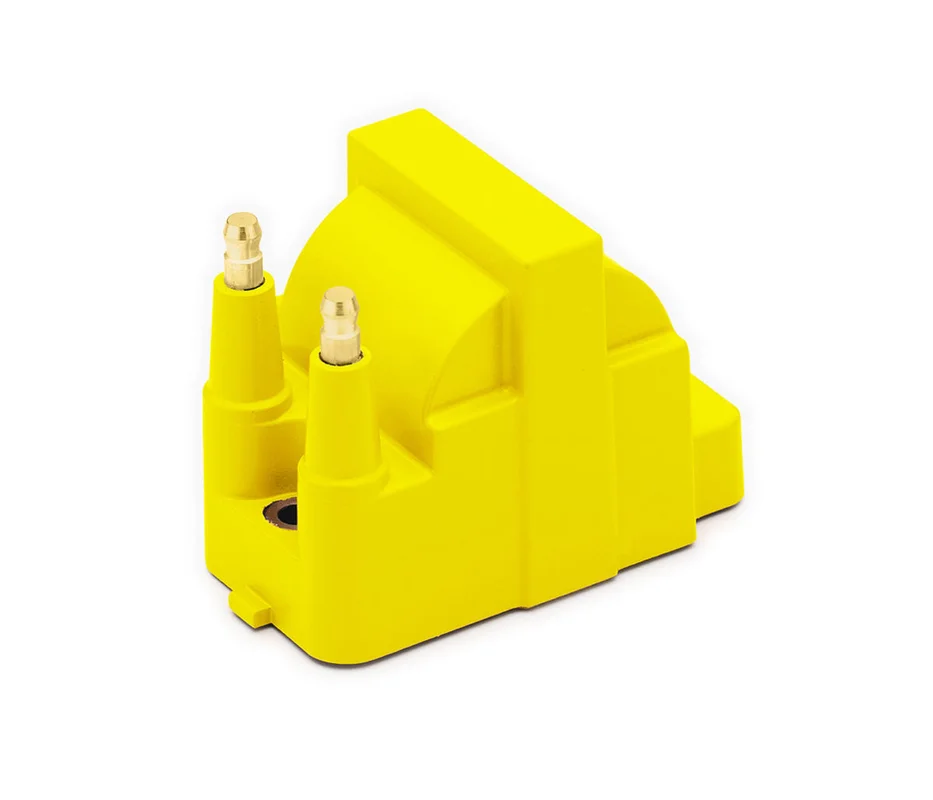

ACCEL 140017 – SuperCoil Direct Ignition Coil
Ignition Coil- SuperCoil- AC/Delco Style for GM 1986-1999 DIS- Yellow-Individual
SuperCoil Direct Ignition Coil; Fits w/Distributorless Ignition System; Primary Resist 0.5 Ohms; Secondary 8.0 k Ohms; Turn Ratio 75:1; Max Voltage 45000V; Yellow;
Re-engineered to be the only true performance AC/Delco style DIS coil. “”Raised Dome”” construction, section bobbin technology, highly specialized silicone magnetic steel core, optimized windings, resistance, and turns ratio result in higher energy and voltage outputs, and longer dwell. Compatible with OE computer controlled ignition systems as well as Crane or MSD capacitive discharge DIS ignition systems. Brass contact increases energy transfer and resists corrosion better than aluminum. High dielectric strength “”ACCEL Yellow”” over molded housing. Packaged as single unit: 4 cyls require 2 coils, 6 cyls require 3 coils and 8 cyls require 4 coils.
- 10-15% More Energy
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- Standard Motor Products SMP Dr-39
- MSD 8224
Application: GMBrand: ACCELCategory: Ignition CoilsColor: YellowEmission Code: 3Maximum Voltage: 45,000 Voltspart type: Direct Ignition CoilPeak Increase in Current vs. OE: 12%Peak Increase in Dwell vs. OE: 21%Peak Increase in Voltage vs. OE: 10%Primary Resistance: 0.5 OhmsProduct Type: Ignition CoilsQuantity: 1Quantity Per Pkg.: 1Secondary Resistance: 8.0 k OhmsSub Category: Ignition CoilTurns Ratio: 75:1Warning: California Proposition 65Warranty: Manufacturer’s Limited 90 Day WarrantyWeight: 1.0000
